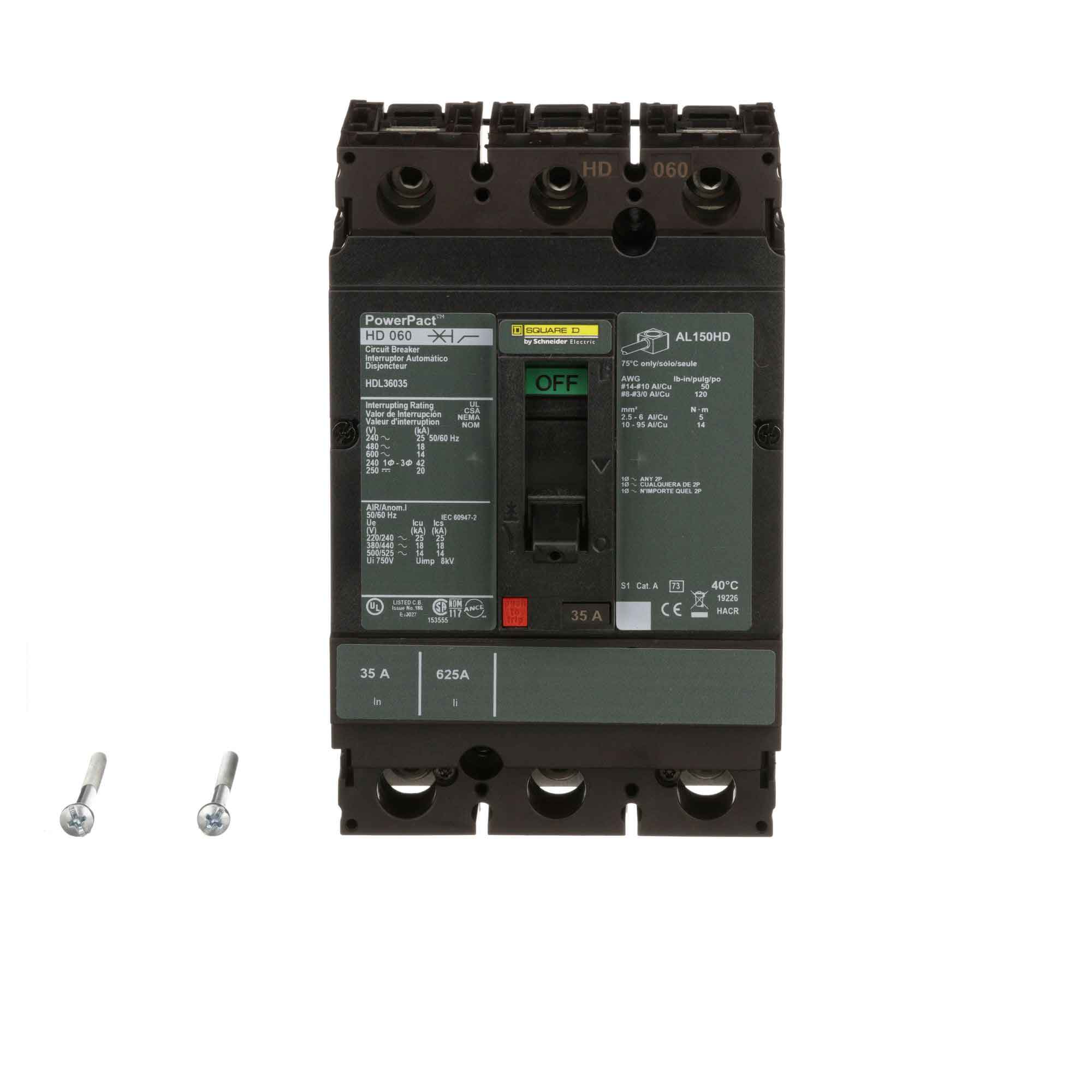

HDL36035 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HDL36035 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDL36035 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
35 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDL36035 - Schneider Electric Molded Case Circuit Breakers
In the Powerpact series, Square-D introduces a 3-phase (3P) molded case circuit breaker with a 35A rating at 600V. With a standard interrupting capacity of 18kA@480V, this Feed-Thru breaker is UL listed and suitable for reverse fed applications. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and line & load side lug terminals, it ensures safety and efficiency across various applications.
