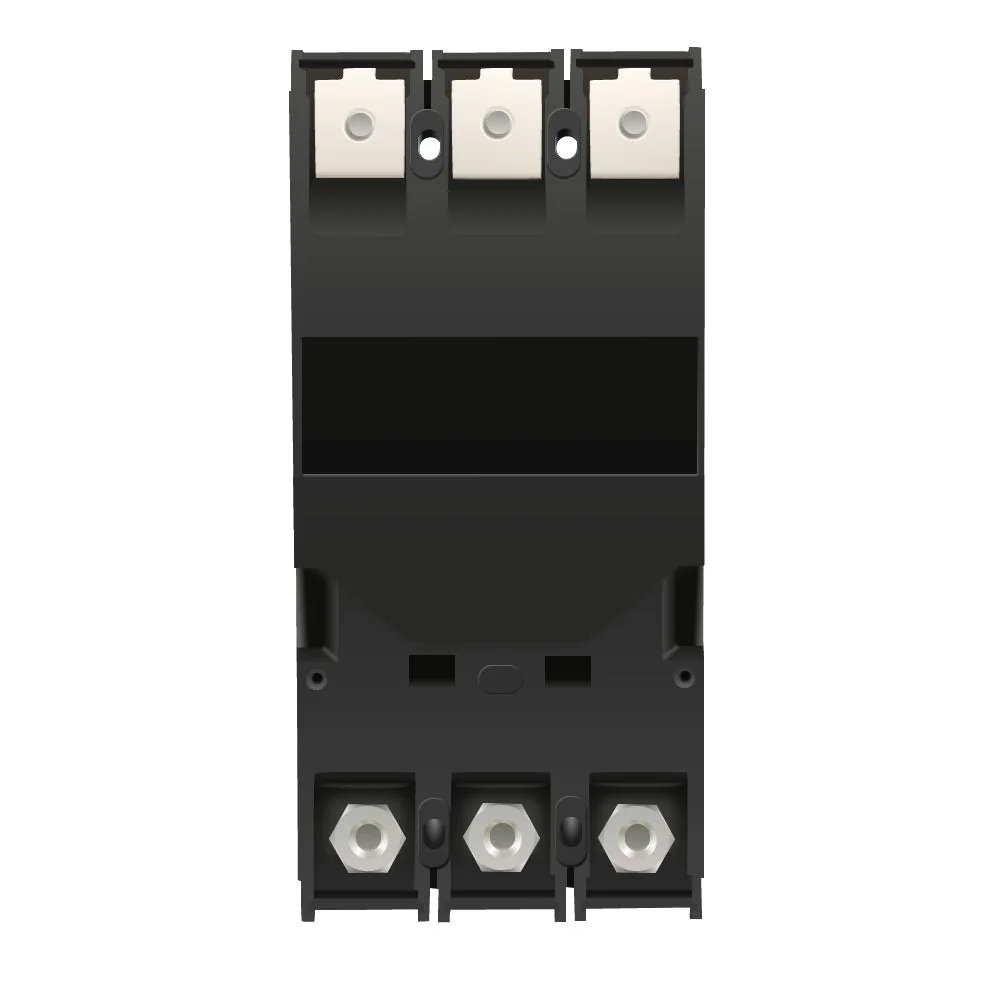

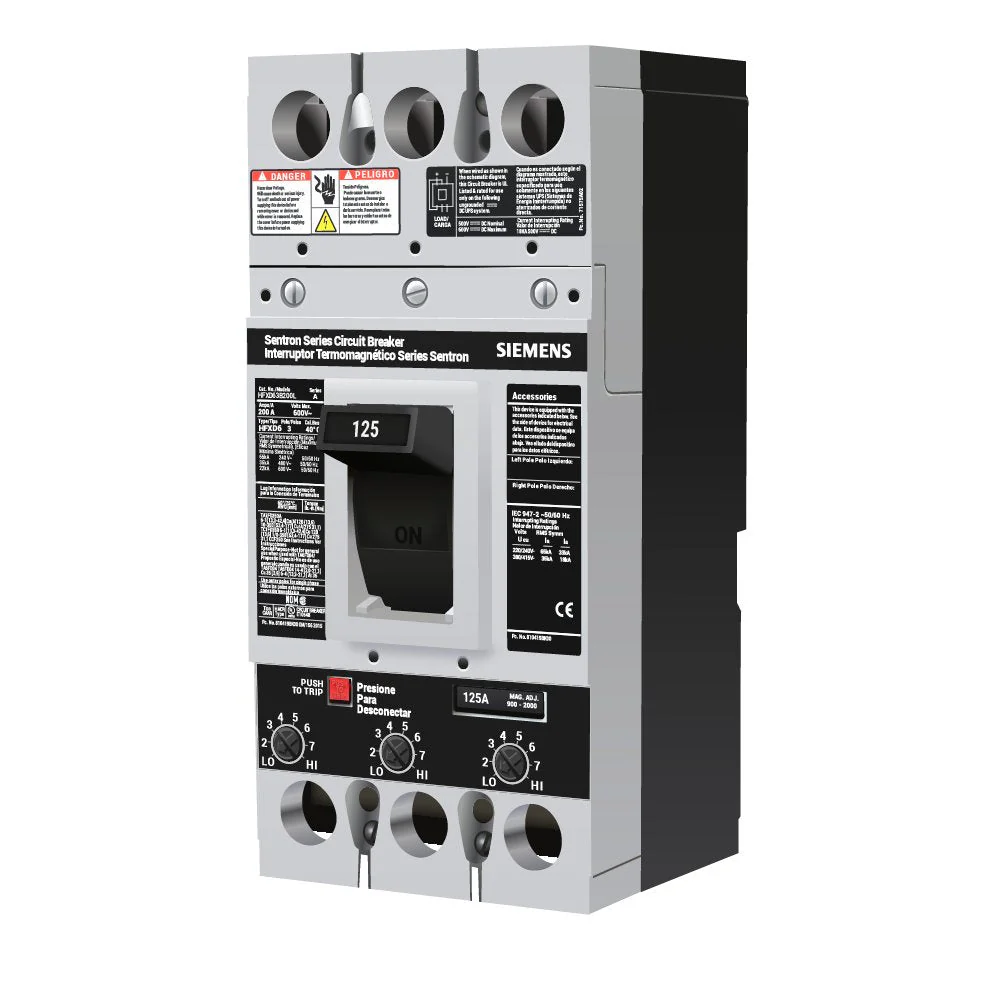

HFXD63B125L - Siemens - Molded Case Circuit Breaker
Overview
Product Specifications - HFXD63B125L - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
HFXD63B125L -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HFXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.5" x 4.48" x 5.14"
-
Weight:
9 lbs
Standards
Product Description - HFXD63B125L - Siemens Breakers Molded Case Circuit Breakers
Siemens HFXD sentron series three pole 125 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit and line & load side lug terminals.
