CHB230 - Eaton - 30 Amp Circuit Breaker

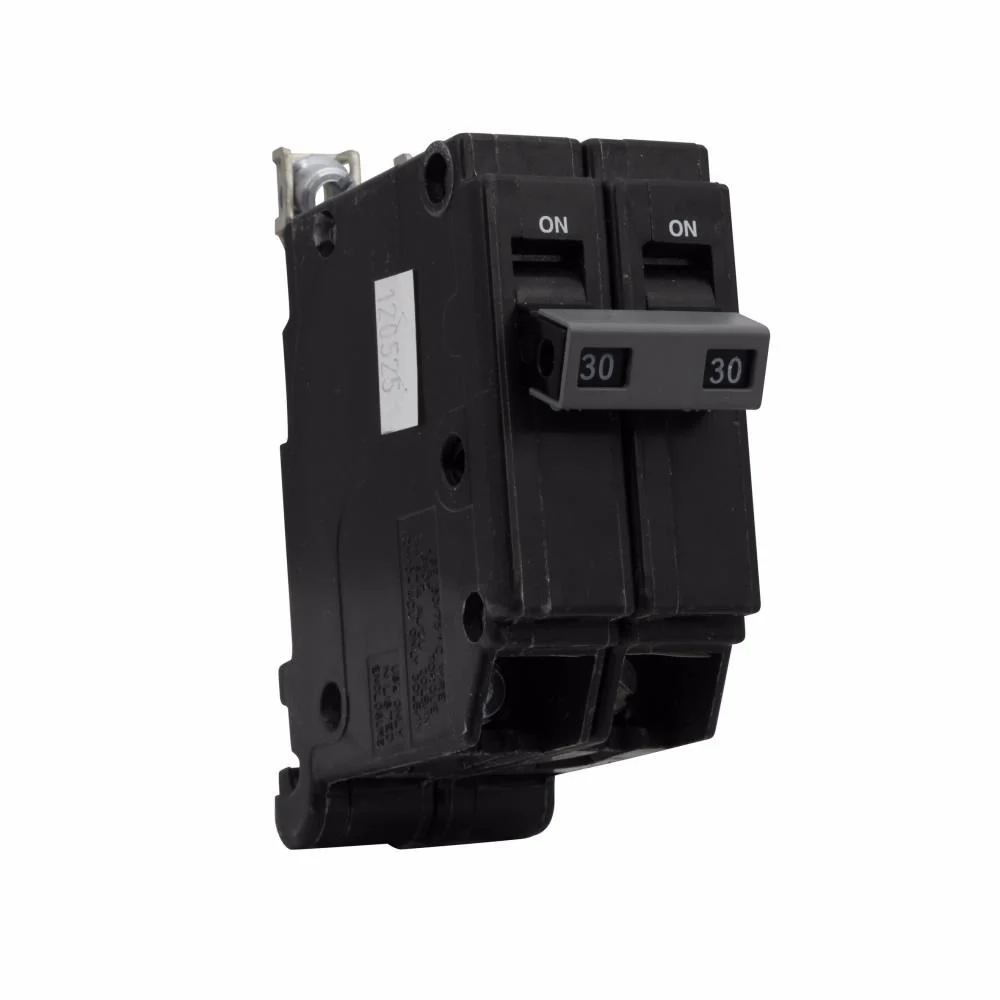

CHB230 - Eaton Cutler-Hammer Bolt-On Circuit Breaker
Eaton / Cutler-Hammer Miniature Bolt-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker has a current rating of 30 amps and voltage rating of 120/240 Vac it has an interrupt current rating of 10 kilo-Amps it can accommodate a wire size of 14-8 AWG at load it has a bolt-on type connection it is suitable for industrial Pb Panelboards applications a circuit breaker is UL and Csa certified.
Specifications:
- Product Name: Type CHB Circuit Breaker
- Product Length: 3.7 IN
- Product Height: 3.4 IN
- Product Width: 2.2 IN
- Product Weight: .85 LB
- Certifications: UL 489
- Interrupt Rating: 10 kAIC
- Wire Size: #14-8 AWG
- Circuit Breaker Type: CHB
- Used With: CH Loadcenters
- Voltage Rating: 120/240V
- Amperage Rating: 30A
- Number Of Poles: Two-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3.4" x 2.2" x 3.7"
Original: $170.99
-70%$170.99
$51.30More Images
